Feature Description

● Contact gap is 4.0mm
● 40A switching capability,200A loading current capability

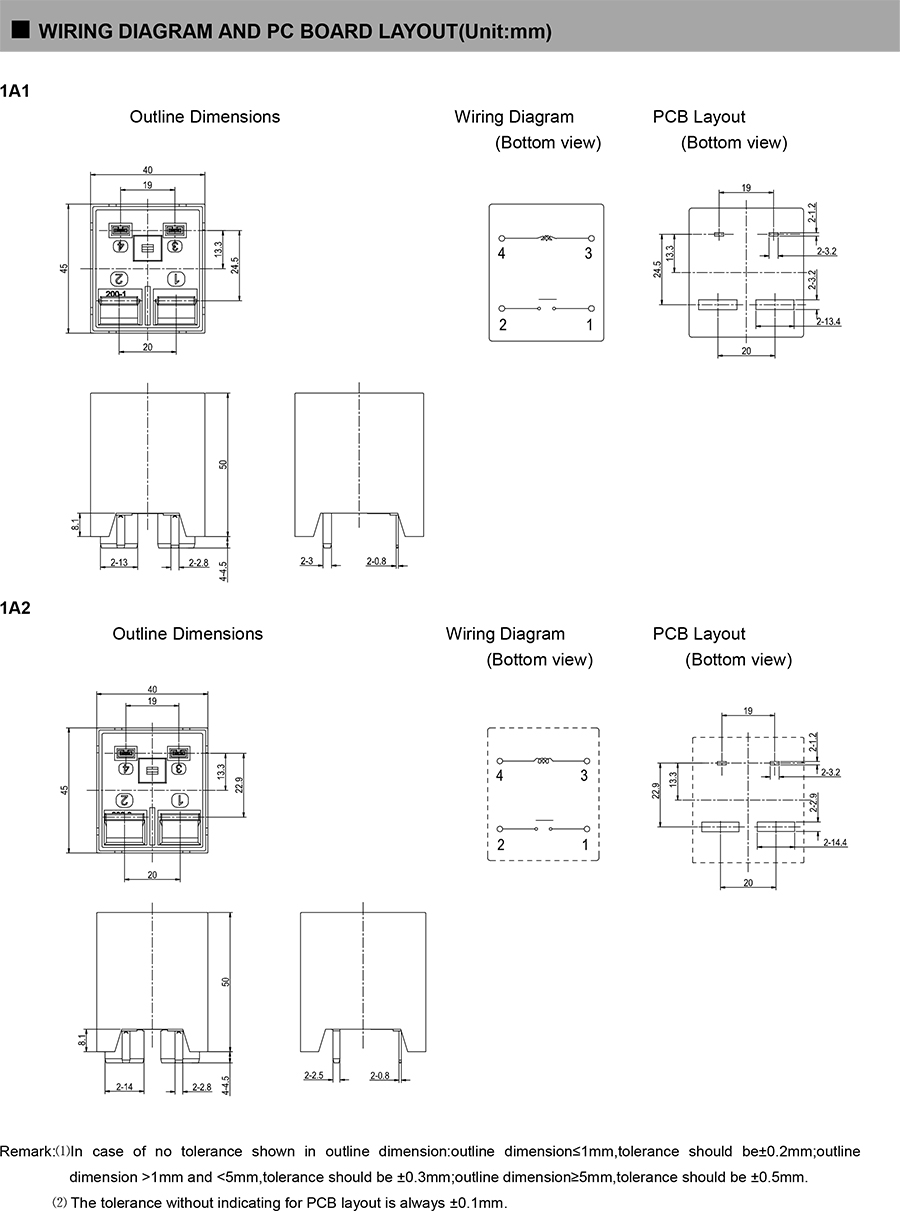

● Outline Dimensions:(45X40X50)mm
● UL insulation system:Class F
● Main application: PV inverter,Inverter precharge circuit control,Industrial control device
